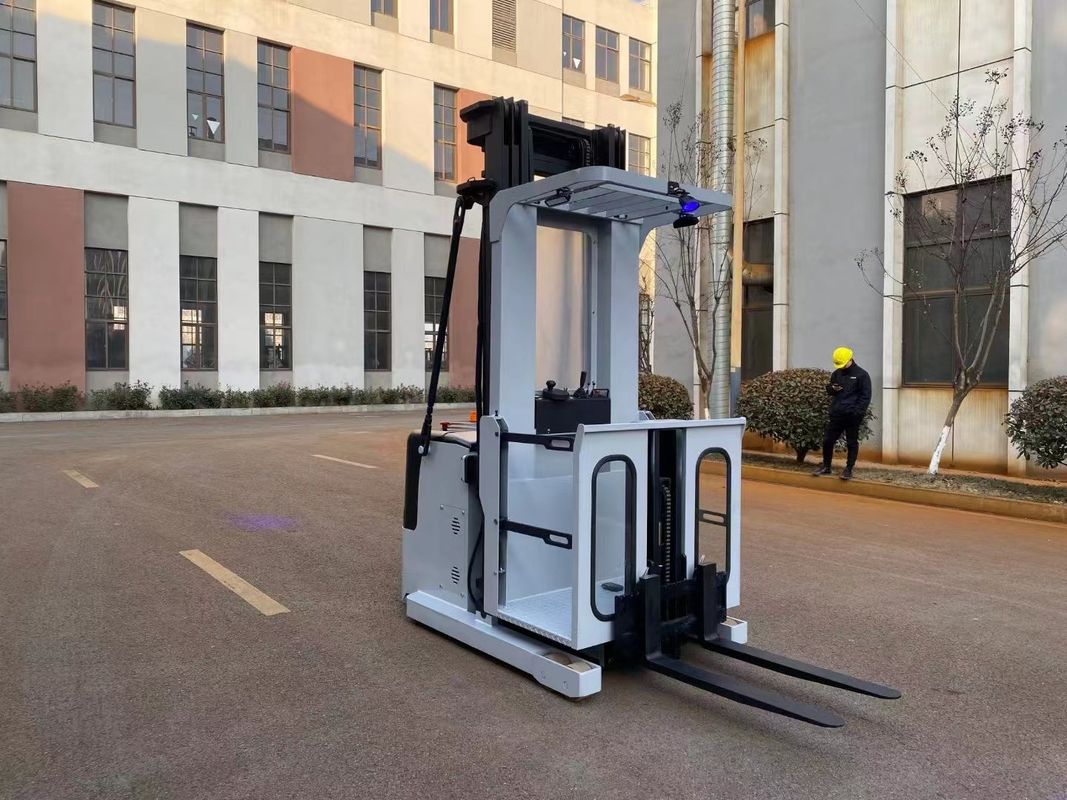

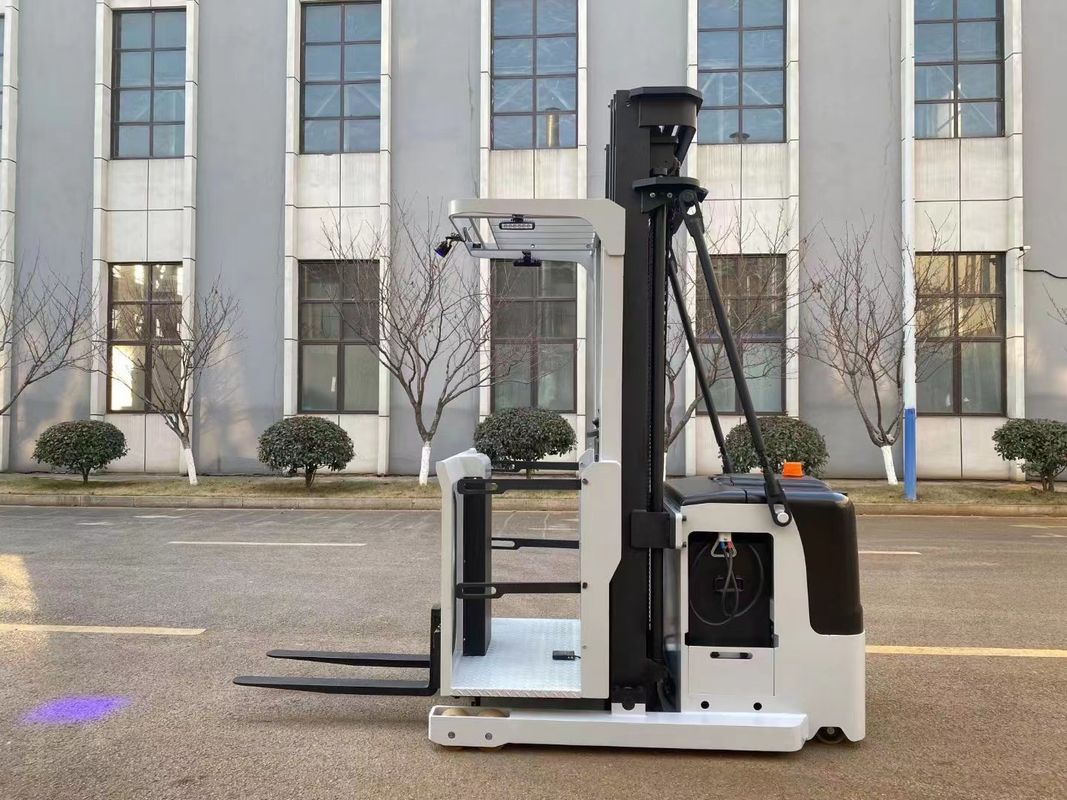

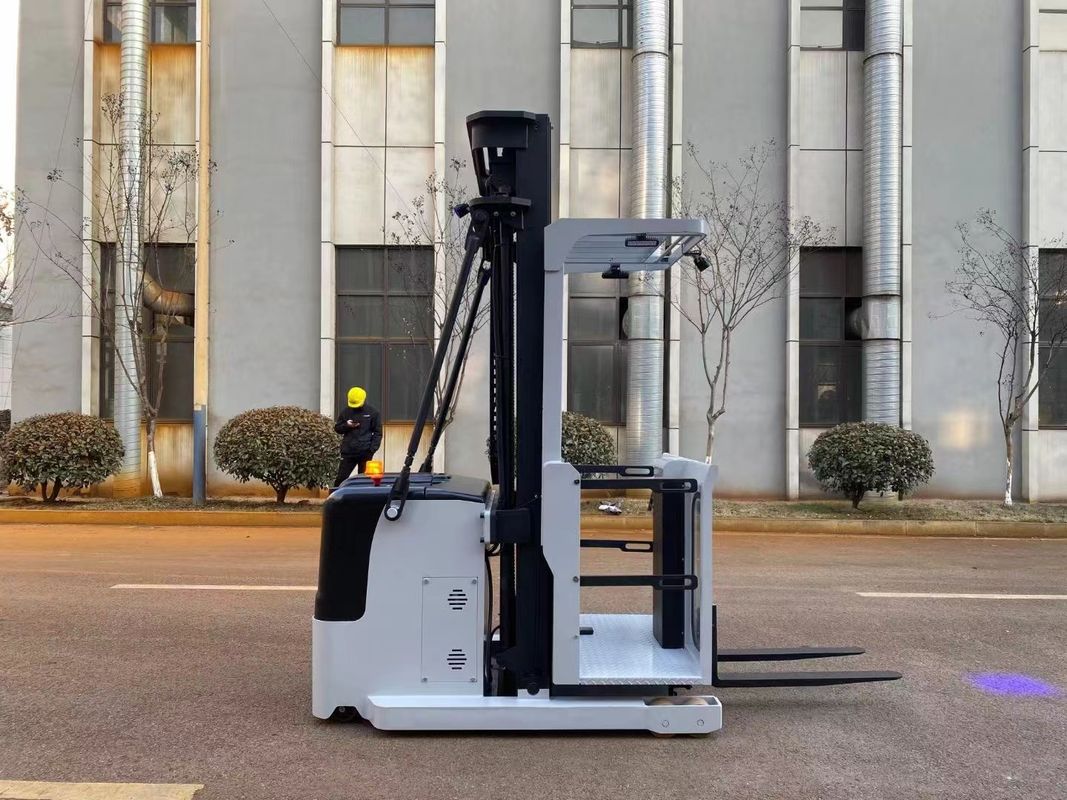

More Specification:
Rated load capacity: 1000kg

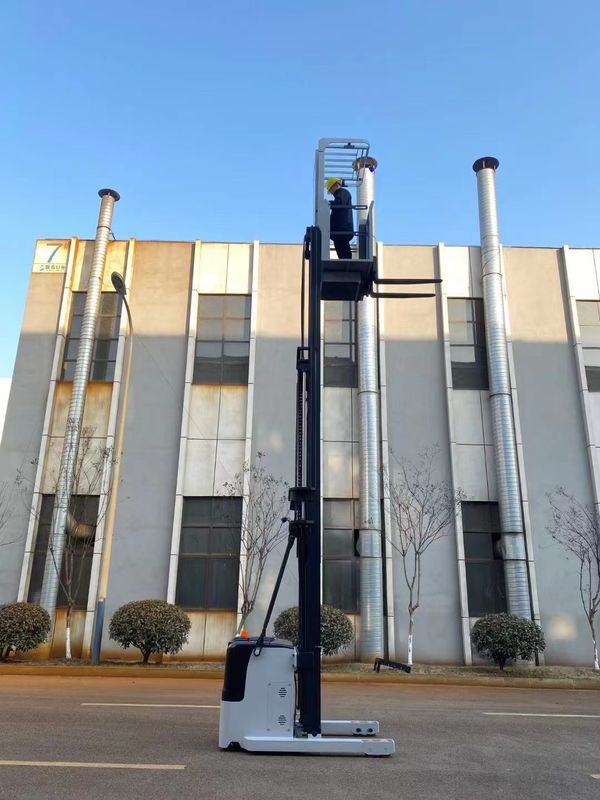

Lifting height: 6000mm
Fork length: 920mm
Free lifting: 600mm
Battery capacity: 24V420AH
Electromagnetic hydraulic valve thumb switch
Electronic steering side pull battery structure
Advantages:
Wide angle high-strength shock-absorbing mast
USA CURTIS brand drive control system
perpendicular drive
Electronic steering, portable, and silent
Integrated low-noise hydraulic pump
Electromagnetic hydraulic valve
AC drive, brushless, motor maintenance free
Security:
Automatic deceleration device for bends
Controller multiple brake protection system
Leisure backrest/emergency braking device
| Model | CXD15 | |
| Rated lifting capacity | kg | 1500 |
| Load center | mm | 450 |
| Power type | Electric | |
| Operator type | Standing | |
| Total weight | 3150 | |
| Drive wheel | mm | φ230×75 |
| Front wheel | mm | φ150×90 |
| Auxiliary wheel | φ130×55 | |
| Lifting height | mm | 6000 |
| Max. lifting height of fork | mm | 6000 |
| Overall length | mm | 3065 |
| Overall width | mm | 1342 |
| Height of mast closed | 2885 | |
| Maximum height when rising to the maximum | mm | 8250 |
| Height of roof protection frame | mm | 2250 |
| Min. ground clearance | mm | 50 |
| Min. height of operating table from the ground | mm | 240 |
| Auxiliary lifting height | mm | 0 |
| Max. lifting height of operating table | mm | 6240 |
| Fork length | mm | 920*120*40 |
| Fork outer width | mm | 680 |
| Turning Radius | mm | 1832 |
| Right angle channel (1200 horizontal x 1000) | 3370 |
