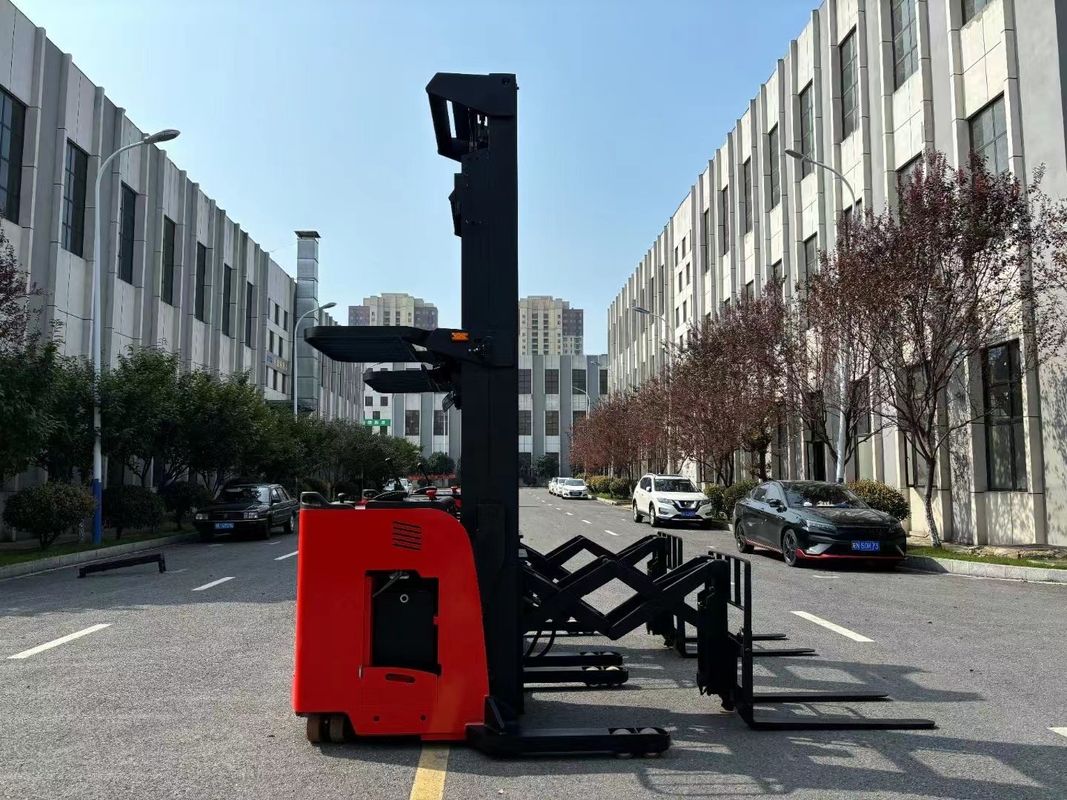

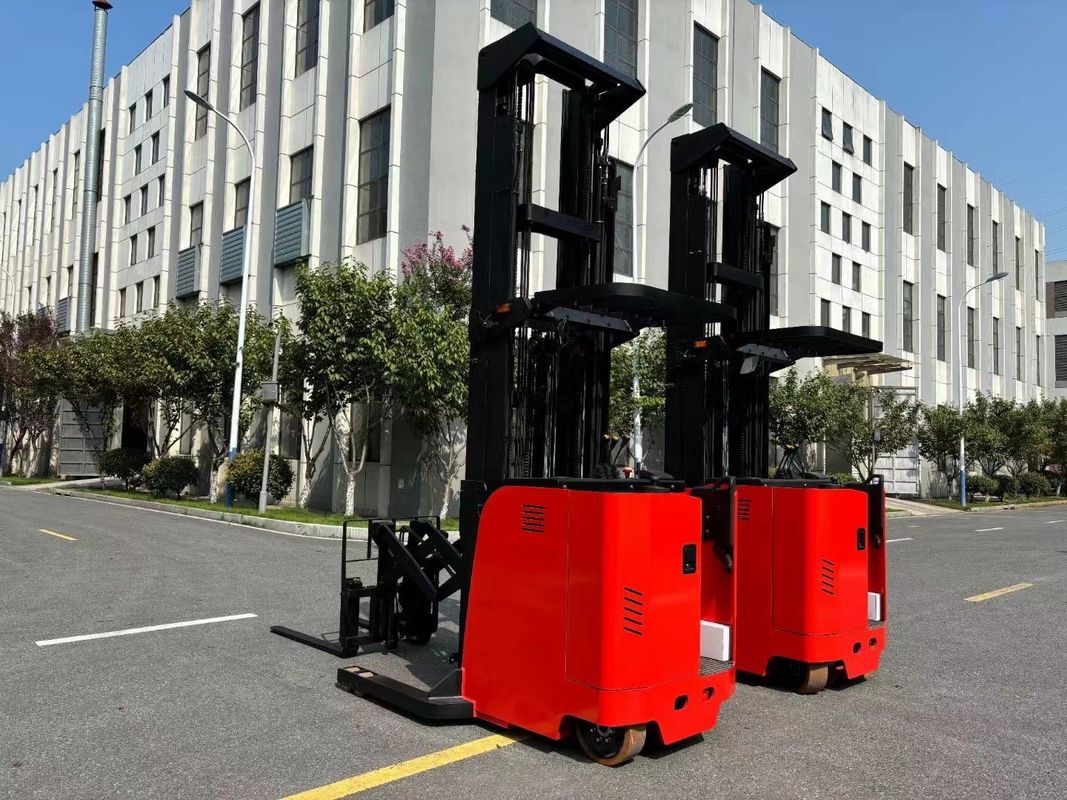

Double Reach Electric Forklift Load 1500 KGS Forward Distance 1000 Mm

Double Reach Electric Forklift Load 1500 KGS Forward Distance 1000 Mm

  • Highlight

    Forward Distance Double Reach Electric Forklift

    ,

    1000 mm Double Reach Electric Forklift

    ,

    1500 KGS Double Reach Electric Forklift

  • Rated Load Capacity
    1500 KG
  • Lifting Height
    8500 Mm
  • Fork Lenght
    1070 Mm
  • Forward Distance
    1000 Mm
  • Forward Tilt And Backward Tilt
    3/5 Degree
  • Battery Capacity
    48V400AH
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD15-85
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    30 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Double Reach Electric Forklift Load 1500 KGS Forward Distance 1000 Mm

  • Equipped with double-deep telescopic forks, allowing the forks to extend and retract during loading and unloading. This design increases operational flexibility and efficiency in tight spaces.
  • Ideal for scenarios requiring frequent handling of goods at different depths, such as in warehouses where goods need to be retrieved or placed at various depths on racks.
  • Capable of performing more complex operations in limited spaces, such as reaching across larger pallets or loads.

Rated load: 1500kg
Height increase: 8500mm
Fork length: 1070mm
Forward and backward tilt: 3/5 °
Battery capacity: 48V400AH
Forward distance: 1000mm
Electronic steering side pull battery
Three level fully free portal frame
Wireless camera monitor
Yongjie Li accepts customization of various sizes





Model   CSD15
Rated load kg 1500
Maximum lifting height mm 8500
Load center   500
Tire configuration   Polyurethane wheel
Operation mode   Seated type
Mast tilt angle   2/4
Fork size mm 1070*120*40
Fork adjustment range mm 260-720
Mast forward movement distance mm 550
Mast type   Triplex full free mast
Overall length mm 2480
Overall width mm 1100
Height of mast mm 2655
Max. height of fork lifting (including gear rack) mm 6985
Turning radius mm 1755
Height of roof protection frame mm 2210
Minimum stacking channel mm 2850 (1000*1000mm pallet)
Minimum ground clearance mm 70
Maximum driving speed km/h 4.0/5.0
Rising speed mm/s 90/140
Gradeability % ≤5
Total weight kg 2900
Drive wheel mm 230*90
Front wheel mm 210*85
Auxiliary wheel mm 150*50
Battery voltage/ capacity v/ah 24/280
Lithium battery charger v/ah 24/40
Lifting motor kw 3.0
Drive motor kw 2.2
Travel speed regulation mode   Hall accelerator
Braking mode   Electromagnetic braking
Steering mode   Electric steering


FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than
10 years.

Q2: How about the delivery time?
A2: About 20-30 days based on different model.
For some standard products, we may have stock and could delivery immediately.

Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.

Q4: Can you provide OEM and ODM service?
A4: Yes. We can do it .
