Precision Handling:
With advanced controls and sensors, operators can perform precise movements, which enhances safety and reduces the risk of product damage.
Reduced Operator Fatigue:
Many models offer ergonomic cabins and user-friendly interfaces, minimizing operator fatigue during long shifts.
Lower Maintenance Costs:
Compared to internal combustion forklifts, electric models have fewer moving parts, which decreases the frequency of maintenance and repair needs.
Quiet Operation:
The quiet operation of electric forklifts improves the working environment, especially in indoor facilities or areas where noise levels need to be minimized.
Rated load: 1600kg
Height increase: 5000mm
Fork length: 1070mm
Battery capacity: 48V465AH
Charging voltage: 220V British standard
Pedestrian downward side standing type
Curtis Control System
Electronic steering side pull battery
Wireless camera and monitor
Walking alarm light, reversing buzzer
LED headlights, turn signals, blue light warning lights

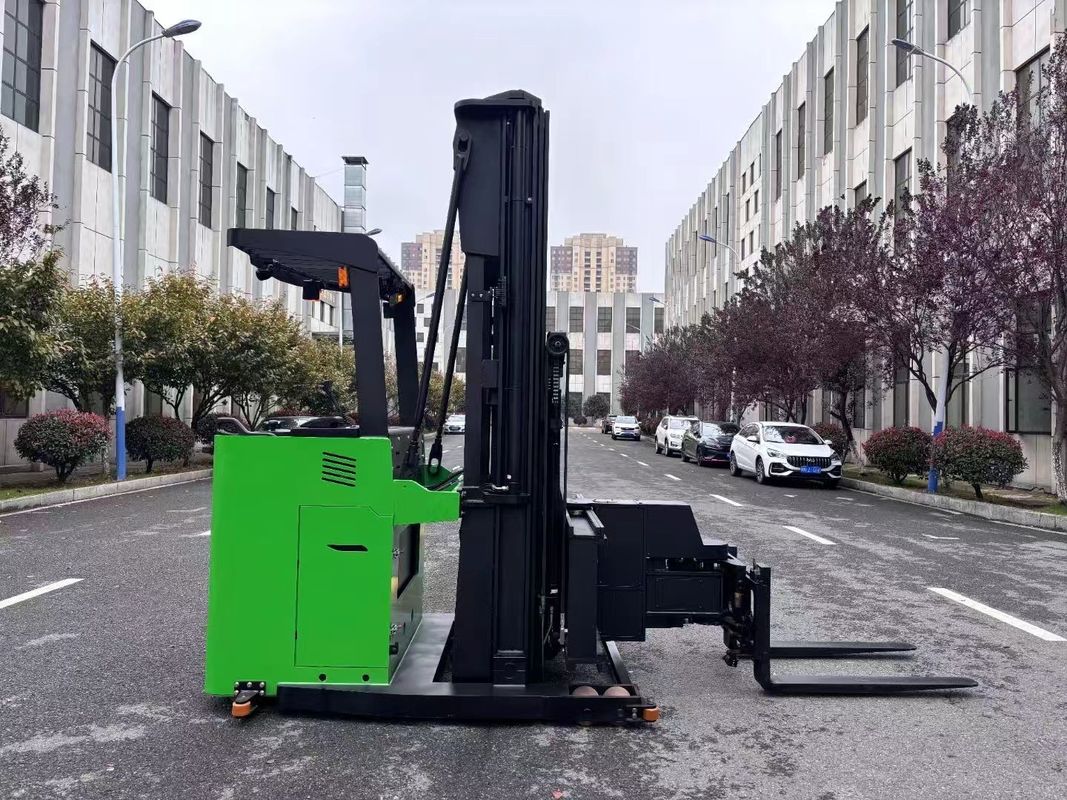

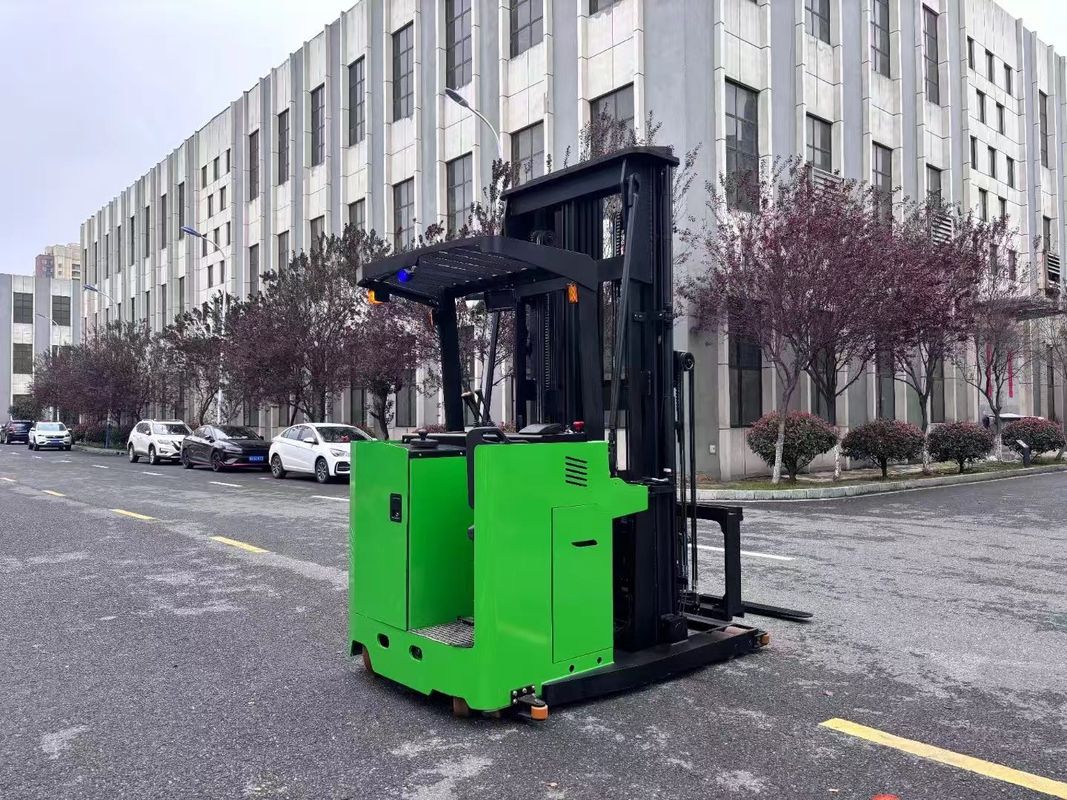

Product parameters:
| Name | 3-Way Pallet Stacker | ||||
| Model | CSD10 | CSD10SQ | CSD16 | CSD16SQ | |
| Power type | Storage battery | ||||
| Driving mode | Side stand-on type | ||||
| Rated load | kg | 1000 | 1000 | 1600 | 1600 |
| Load center distance | mm | 500 | |||
| Front overhang distance | mm | 655 | 655 | 665 | 665 |
| wheelbase | mm | 1605 | 1605 | 1700 | 1700 |
| Vehicle weight (including battery) | kg | 4760 | 5270 | 4650 | 5640 |
| Tire type (drive side/ load side) | Polyurethane PU | ||||
| Tire size (load-bearing side) | mm | Φ140×100 | Φ140×100 | Φ140×127 | Φ140×127 |
| Tire size (drive side) | mm | Φ343×135 | Φ343×135 | Φ400×165 | Φ400×165 |
| Number of wheels (front/ rear) (X= drive wheel) | 4/1X | ||||
| Track width (bearing side) | mm | 1210 | 1210 | 1280 | 1280 |
| Closing height of gantry | mm | 2570 | 2750 | 2565 | 2823 |
| Free lifting height | mm | 0 | 1780 | 0 | 1745 |

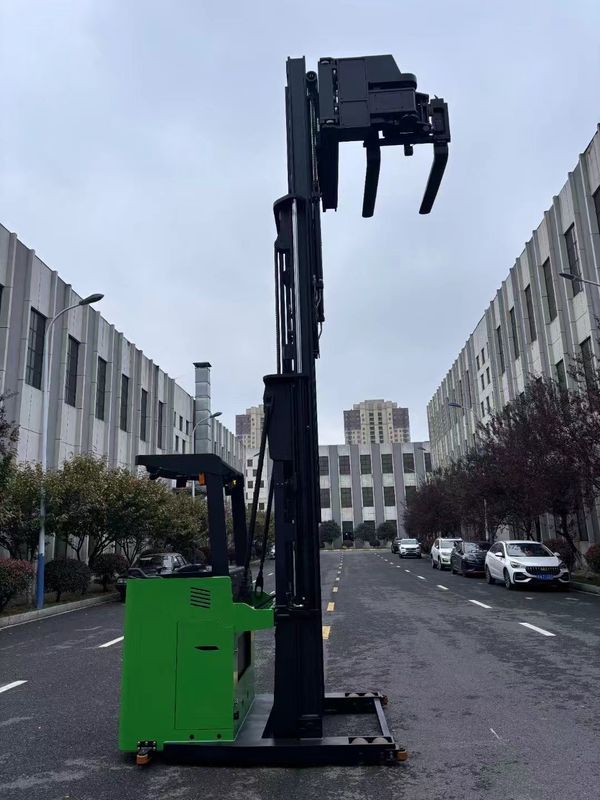

| Lifting height | mm | 3000 | 4500 | 3000 | 4500 |
| Maximum height of gantry during lifting (including blocking rack) | mm | 4060 | 5450 | 4040 | 5555 |
| Height of roof protection frame | mm | 2240 | 2240 | 2260 | 2260 |
| Seat height | mm | 1070 | |||
| Overall length | mm | 2892 | 2890 | 3000 | 3000 |
| Overall width | mm | 1450 | 1450 | 1550 | 1550 |
| Fork size | mm | 1070*100*35 | 1070*100*35 | 1070*125*50 | 1070*125*50 |
| Installation level | Class II type B | ||||
| Outside distance of fork | mm | 230~760 | 230~760 | 400~780 | 400~780 |
| Ground clearance of gantry | mm | 40 | |||
| Stacking channel width (pallet 1000x1200) | mm | 1480 | 1480 | 1600 | 1600 |
| Turning radius | mm | 1750 | 1750 | 1850 | 1850 |
| Driving speed (full load/ no load) | km/h | 8/9 | 8/9 | 7.5/8 | 7.5/8 |
| Lifting speed (full load/ no load) | mm/s | 180/315 | |||
| Braking mode | Electromagnetic type | ||||
| Drive motor power (S2-60min) | kw | 4.5 AC | 4.5 AC | 5.5 AC | 5.5 AC |
| Lifting motor power (S3-15%) | kw | 6.3 DC | 6.3 DC | 8.6 AC | 8.6 AC |
| Battery, voltage/ rated capacity | v/ah | 48/400 | 48/400 | 48/420 | 48/420 |
| Battery weight | kg | 675 | 675 | 740 | 740 |
| Steering system | Electronic steering | ||||
| Battery replacement method | Side pull type | ||||
