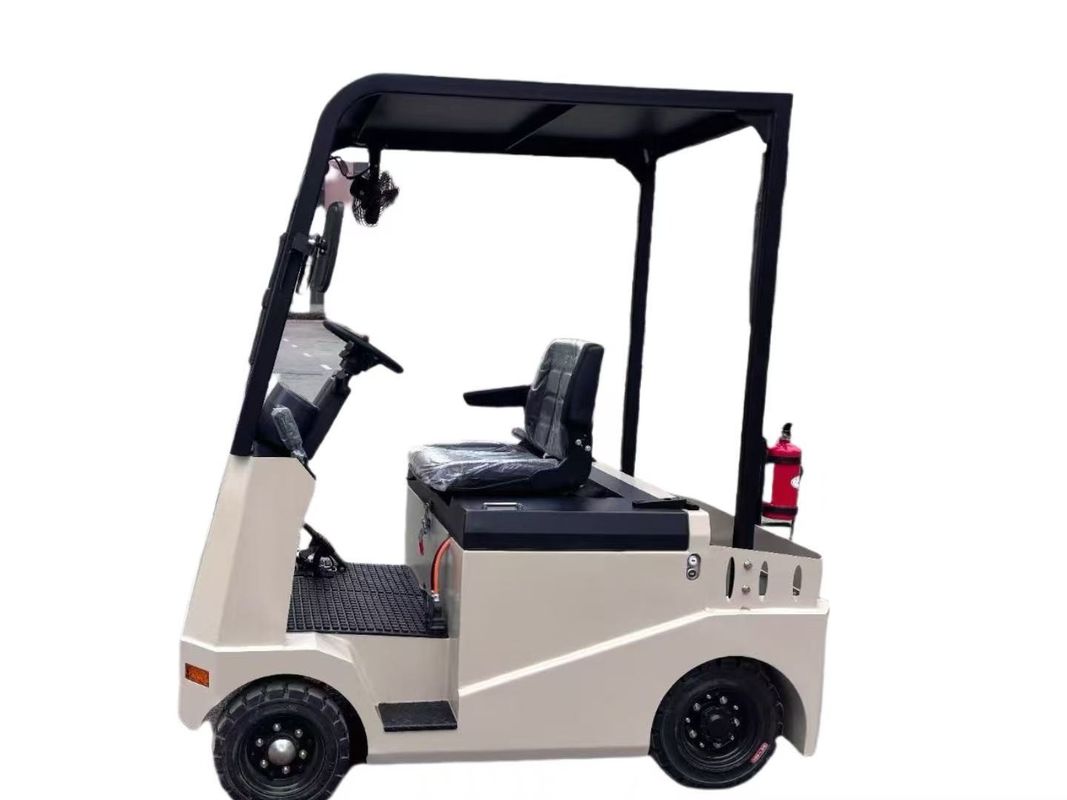

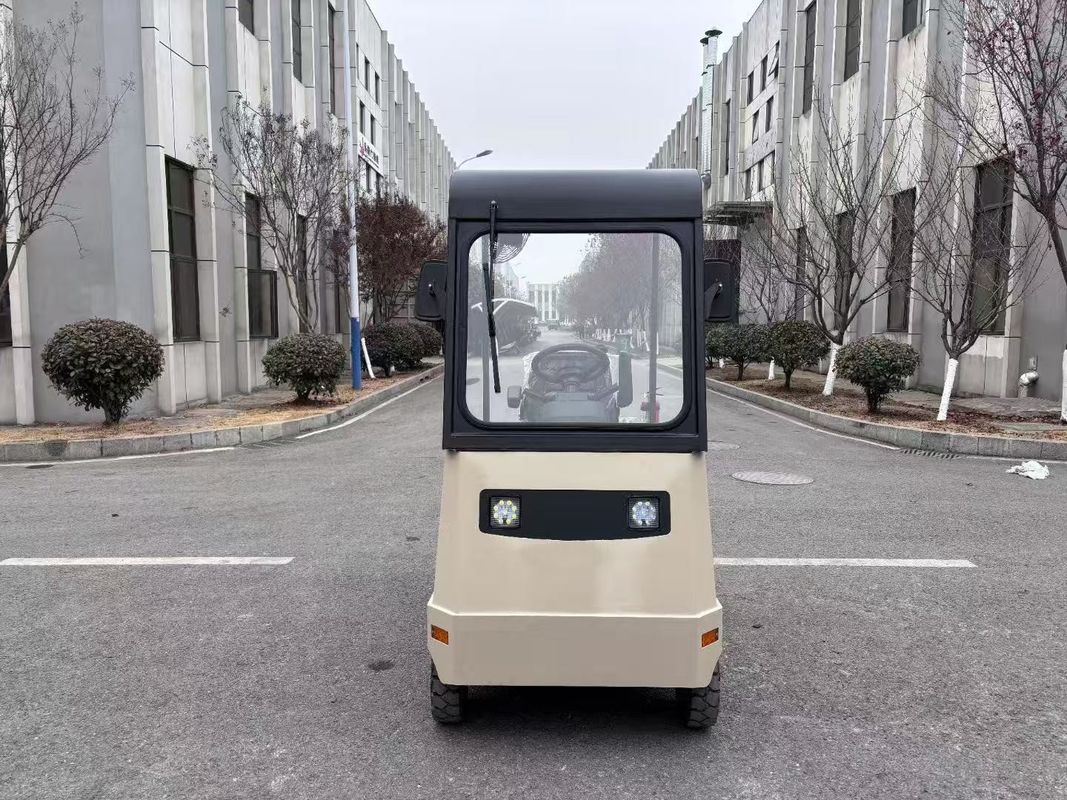

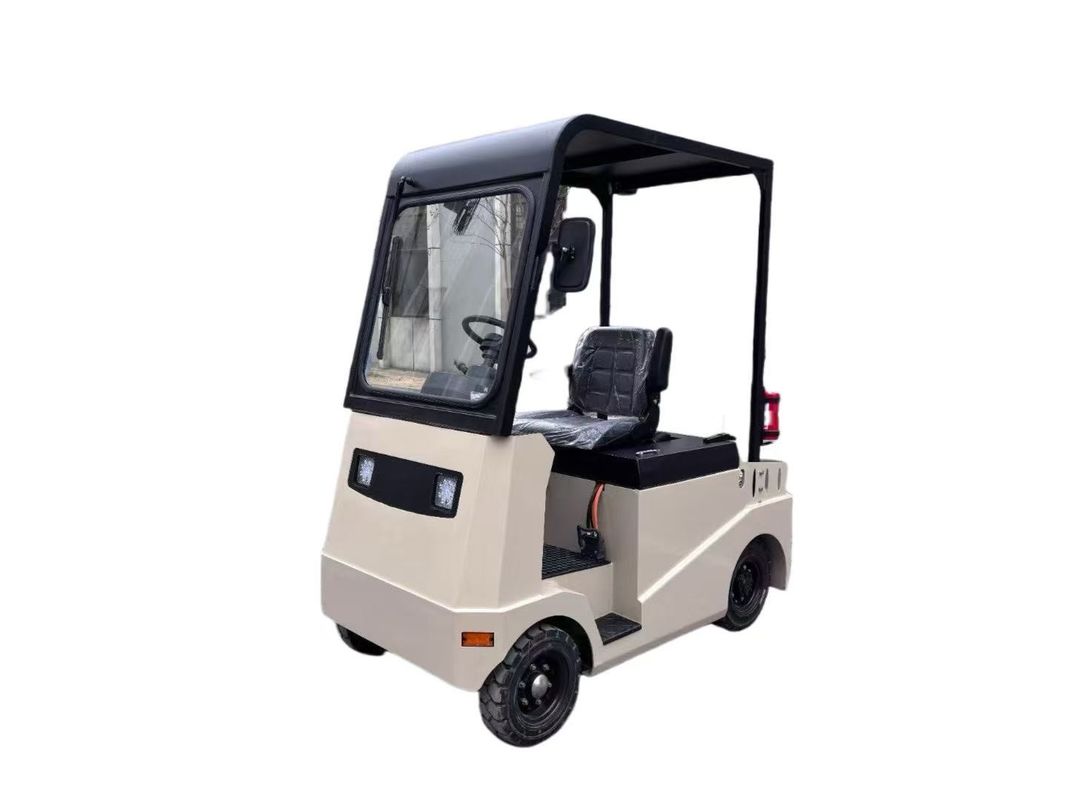

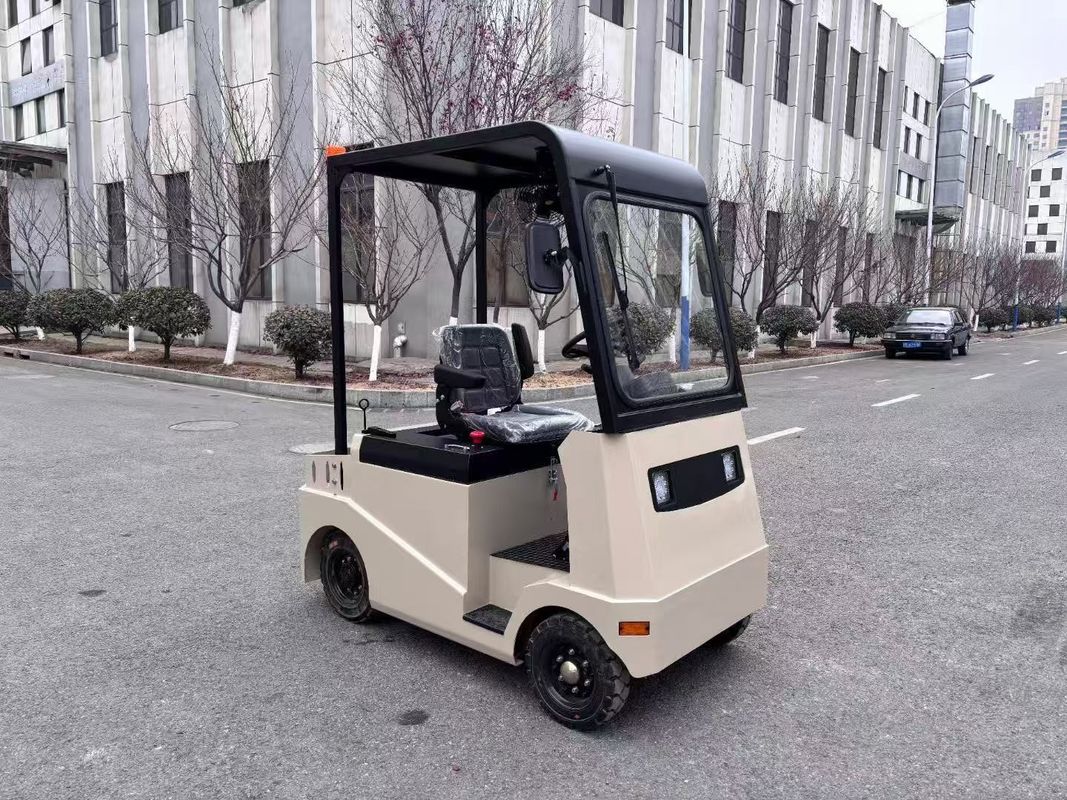

Electric Tow Tractor
Traction weight: 6000kg
Lithium battery: 51.2V250AH
Charger: 48V100A
Walking speed: 6/12km
Four pivot solid tires with four wheels
Curtis Control System
Install ceiling (including fan and wiper)
Walking alarm light, reversing buzzer
Hydraulic steering and hydraulic braking system
Automatic alignment and fine-tuning system
Advantage:
Product parameter
| 驱动方式 | Type of power |
铅酸电池 Lead-acid battery |
|
| 驾驶方式 | Driving type | 步行式Walkie type | |
| 额定牵引重量 | Pated traction capacit) | Q(kg) | 20000 |
| 总长 | Overall length | L1(mm) | 2270 |
| 总宽 | Overall width | b1(mm) | 1060 |
| 总高 | Overall height | h11(mm) | 1235 |
| 牵引座高度 | Height of traction base | h10(mm) | 305/325/345 |
| 操作手柄高度 | Height of operating handle | b11(mm) | 1380 |
| 整车离地间隙 | Height of vehicle off the ground (min) | m(mm) | 118 |
| 蓄电池,电压/额定容量 | Battery,voltage/capacity | V/Ah | 36V/240A |
| 电池重量 | Weight of battery | kg | 216 |
| 整车重量(含电池) | Vehicle weight (including battery) | kg | 2170 |
| 驱动电机功率(S2-60min) | Driving Motor Power (S2-60MIN) | KW | 36V/4KW |
| 轮胎 | Tire | 橡胶实心轮胎 Rubber solid tire | |
| 轮子尺寸,前轮 | Wheel dimensions,front wheel | 3.50-5 | |
| 轮子尺寸,后轮 | Wheel dimensions,rear wheel | 4.00-8 | |
| 轮子,前后数量(x=驱动轮) | Number of wheels,front and rear(x=driving wheel) | 2/2x | |
| 后轮轮距 | Rear wheel track | b10(mm) | 907 |
| 轴距 | Wheelbase | y(mm) | 1060 |
| 转弯半径 | Turn radius | Wa(mm) | 1370 |
| 轴负载,空载前/后 | Axle full load,/no load front/rear | kg | 443/1727 |
| 行驶速度,满载/空载 | Driving speed,full load/no load | Km/h | 2.5/4.0 |
| 爬坡能力,满载/空载(S2-5min) | Maximum climb,full load/no load (S2-5MIN) | 9% | 2.0/12.0 |
| 制动方式 | Braking type | 电磁制动Electromagnetic brake | |
本公司保留更改产品设计和规格的权利,参数若有改变,恕不另行通知
The companyreserves the right to change product design andspecifications.Parameters are subject to change without prior notice
