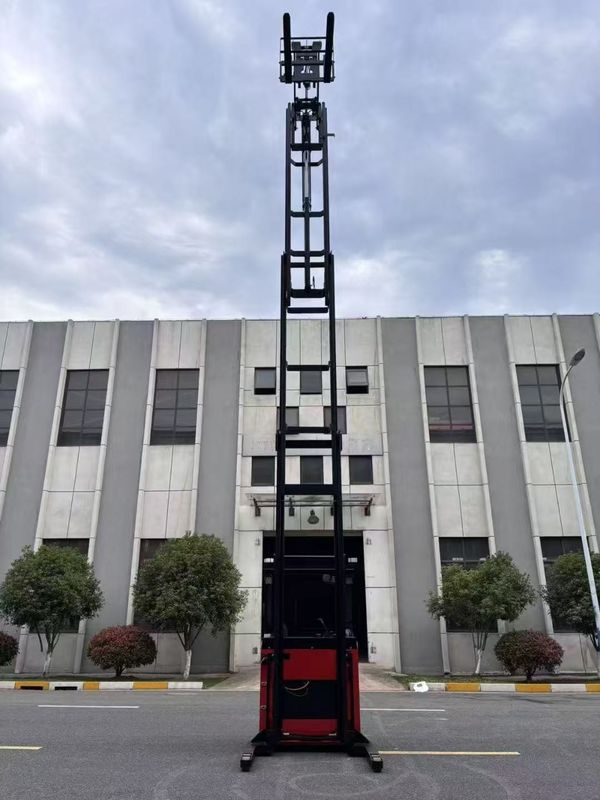

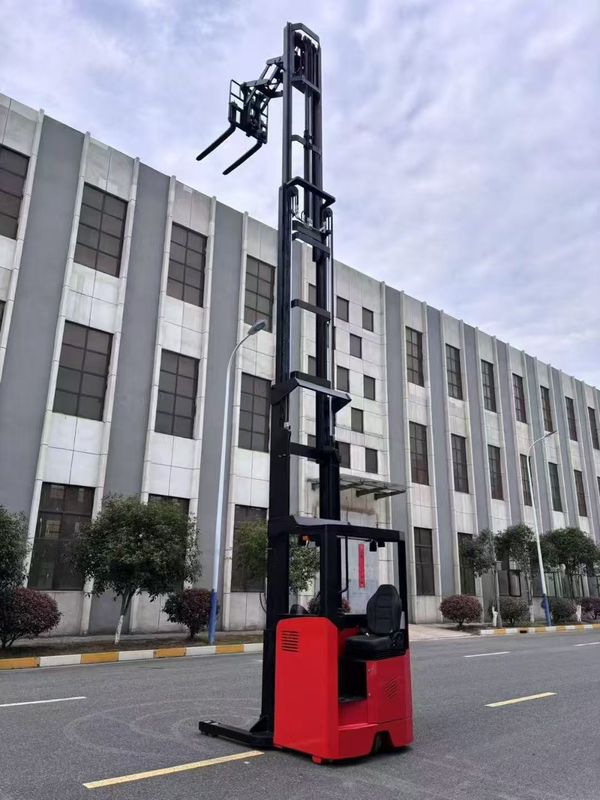

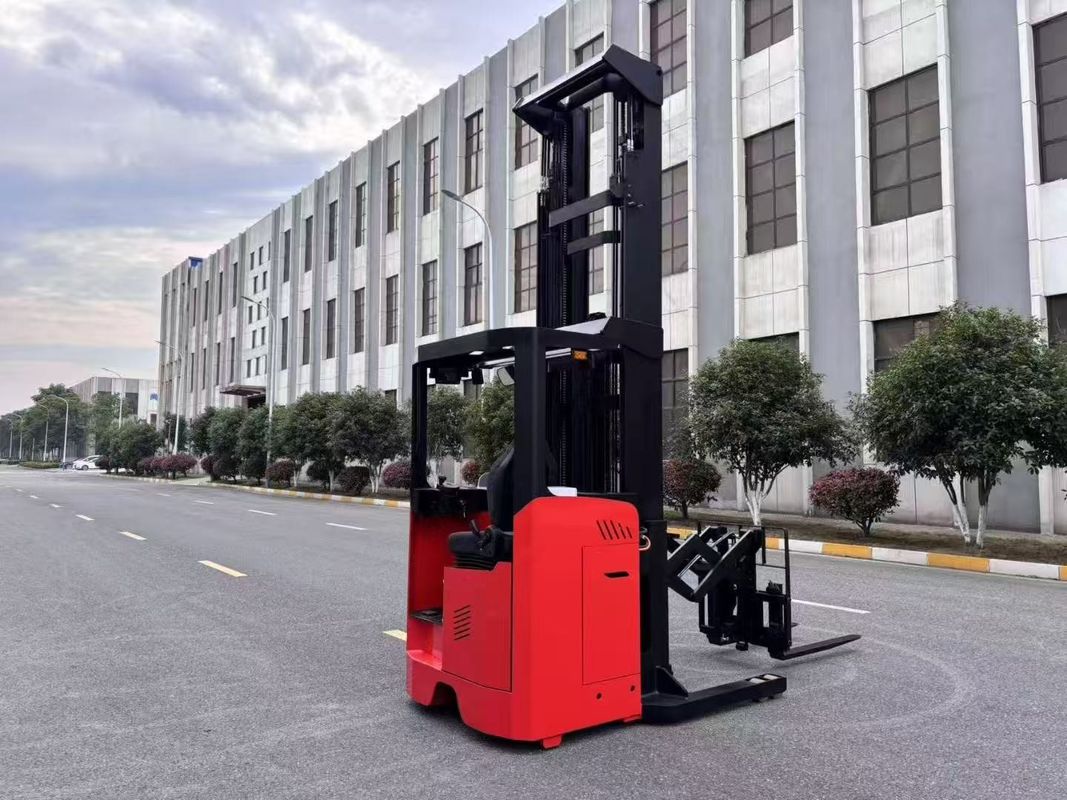

Double extension forward moving forklift
Rated load: 1600kg
Height increase: 4000mm
Fork length: 1070mm
Forward and backward tilt: 3/5 °
Forward distance: 1000mm
Battery capacity: 48V400AH
Charging voltage: American standard 110V
Curtis Control System
Vehicle mounted electronic steering
Three section fully free portal frame
Side pull battery structure
1. Dual extension design increases space utilization by 30%! Efficient handling, easier warehousing and logistics!
2. Forward moving flexible operation, smooth and unobstructed passage in narrow tunnels! Easily handle complex warehousing environments!
3. Strong power, with a load capacity of up to 2.5 tons! Double extension forward moving forklift, worry free heavy-duty handling!
4. Long battery life, working for 10 hours on a single charge! Meet the high-intensity homework requirements around the clock!
6. Dual extension and forward movement, combining dual advantages! Even in narrow spaces, efficient work can be done!
)
7. Special design for cold storage- Stable operation at 30 ° C low temperature! Double extension forward moving forklift, expert in cold storage operations!
8. Low noise, zero emissions, environmentally friendly and efficient! Double extension forward moving electric forklift, the preferred choice for green warehousing!
9. Double extension forward moving forklift, with high load capacity, long range, and flexible operation, solves storage problems in one stop!
10. Industry leading dual extension technology maximizes space utilization! Make your warehousing efficiency leap forward and improve
Product Parameter
| Model | CSD15 | |
| Rated load | kg | 1500 |
| Maximum lifting height | mm | 7000 |
| Load center | 500 | |
| Tire configuration | Polyurethane wheel | |
| Operation mode | Seated type | |
| Mast tilt angle | 2/4 | |
| Fork size | mm | 1220*120*40 |
| Fork adjustment range | mm | 260-720 |
| Mast forward movement distance | mm | 550 |
| Mast type | Triplex full free mast | |
| Overall length | mm | 2480 |
| Overall width | mm | 1100 |
| Height of mast | mm | 2655 |
| Max. height of fork lifting (including gear rack) | mm | 6985 |
| Turning radius | mm | 1755 |
| Height of roof protection frame | mm | 2210 |
| Minimum stacking channel | mm | 2850 (1000*1000mm pallet) |
| Minimum ground clearance | mm | 70 |
| Maximum driving speed | km/h | 4.0/5.0 |
| Rising speed | mm/s | 90/140 |
| Gradeability | % | ≤5 |
| Total weight | kg | 2900 |
| Drive wheel | mm | 230*90 |
| Front wheel | mm | 210*85 |
| Auxiliary wheel | mm | 150*50 |
| Battery voltage/ capacity | v/ah | 24/280 |
| Lithium battery charger | v/ah | 24/40 |
| Lifting motor | kw | 3.0 |
| Drive motor | kw | 2.2 |
| Travel speed regulation mode | Hall accelerator | |
| Braking mode | Electromagnetic braking | |
| Steering mode | Electric steering |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than
10 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model.
For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM and ODM service?
A4: Yes. We can do it .
Our products are sold all over the world, you can rest assured.
