Electric stacker truck refers to various wheeled handling vehicles that handle the loading, unloading, stacking, and short distance transportation of palletized goods. Stacker trucks, also known as stacker trucks or pallet stacker trucks.
A pallet jack, truck or pump is used to transport materials that have been stacked on pallets. These jacks have twin forks, which slide under the pallet. The handle is then used to raise the forks with a pumping force, creating a hydraulic action that lifts the pallet, and enables transportation

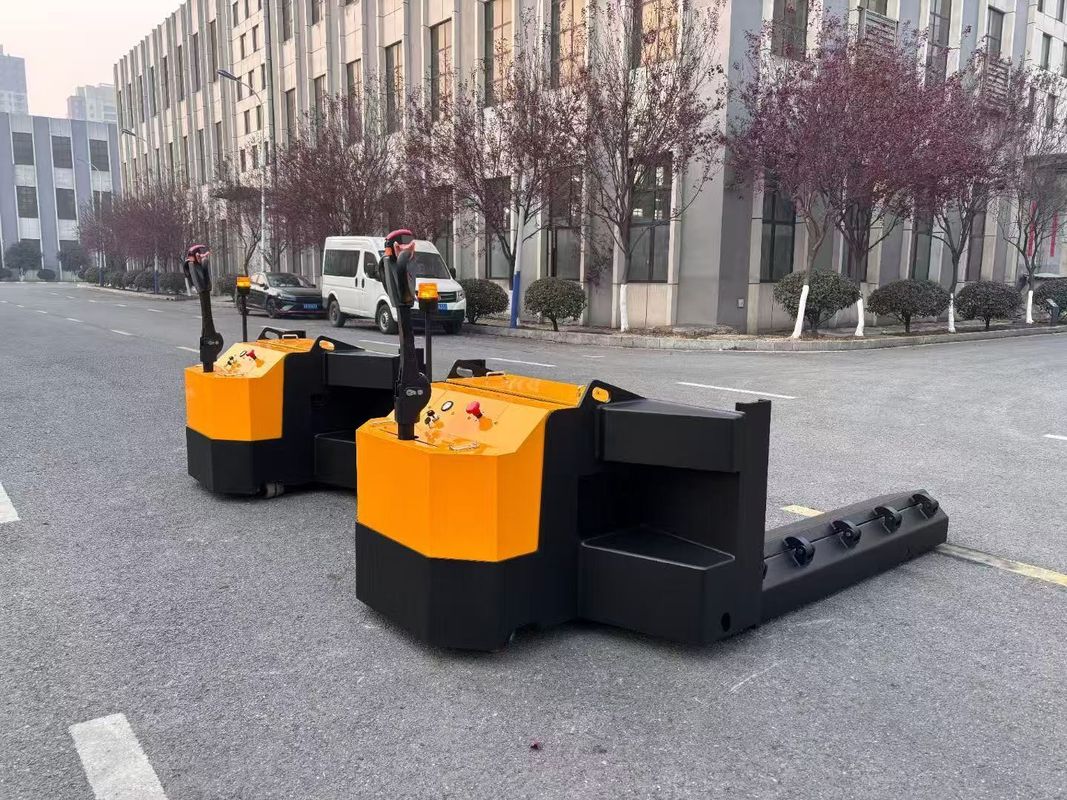

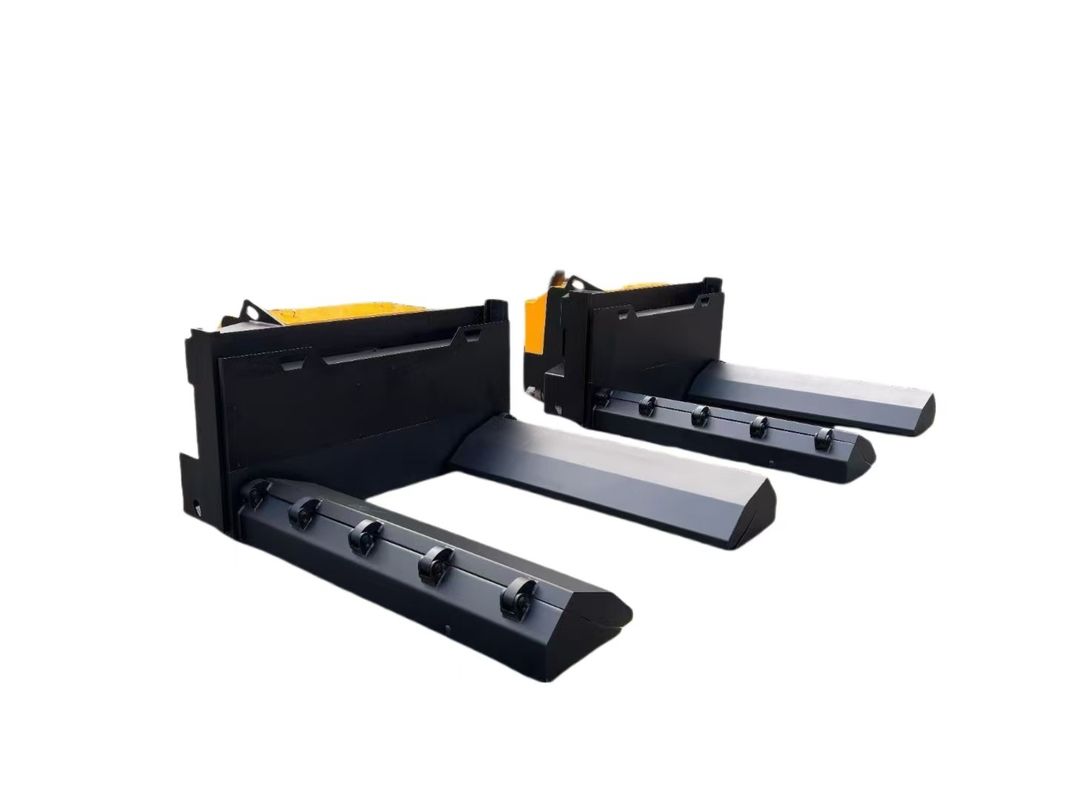

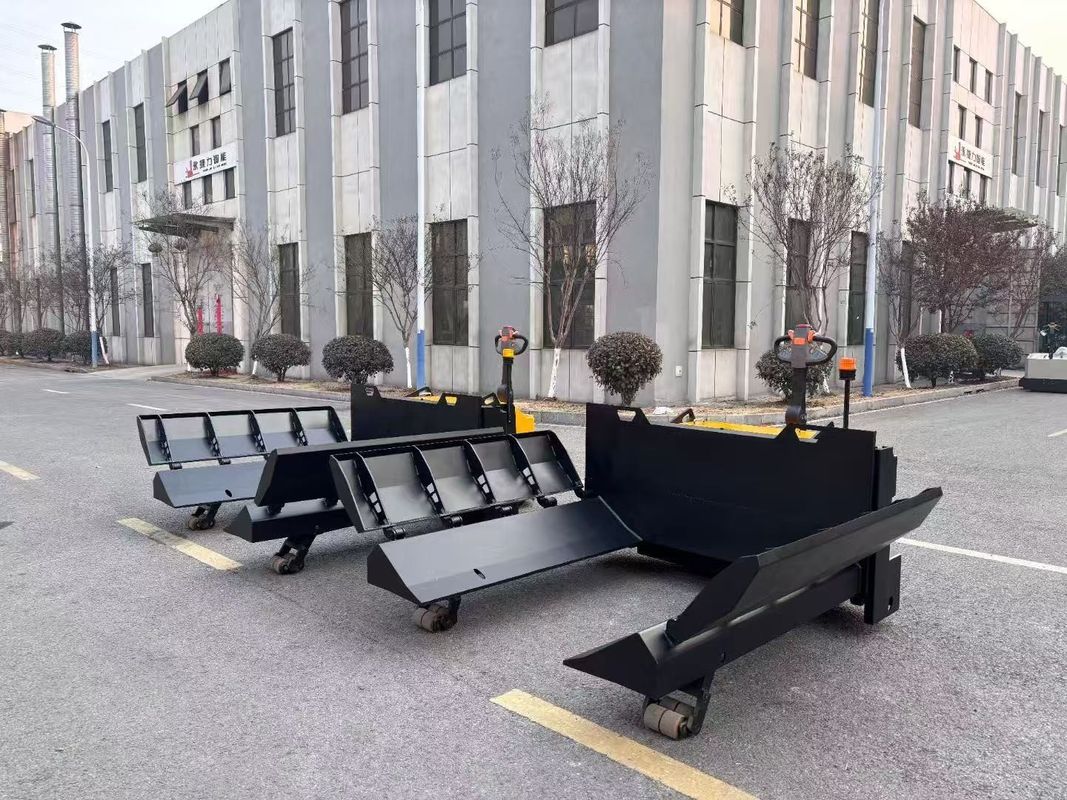

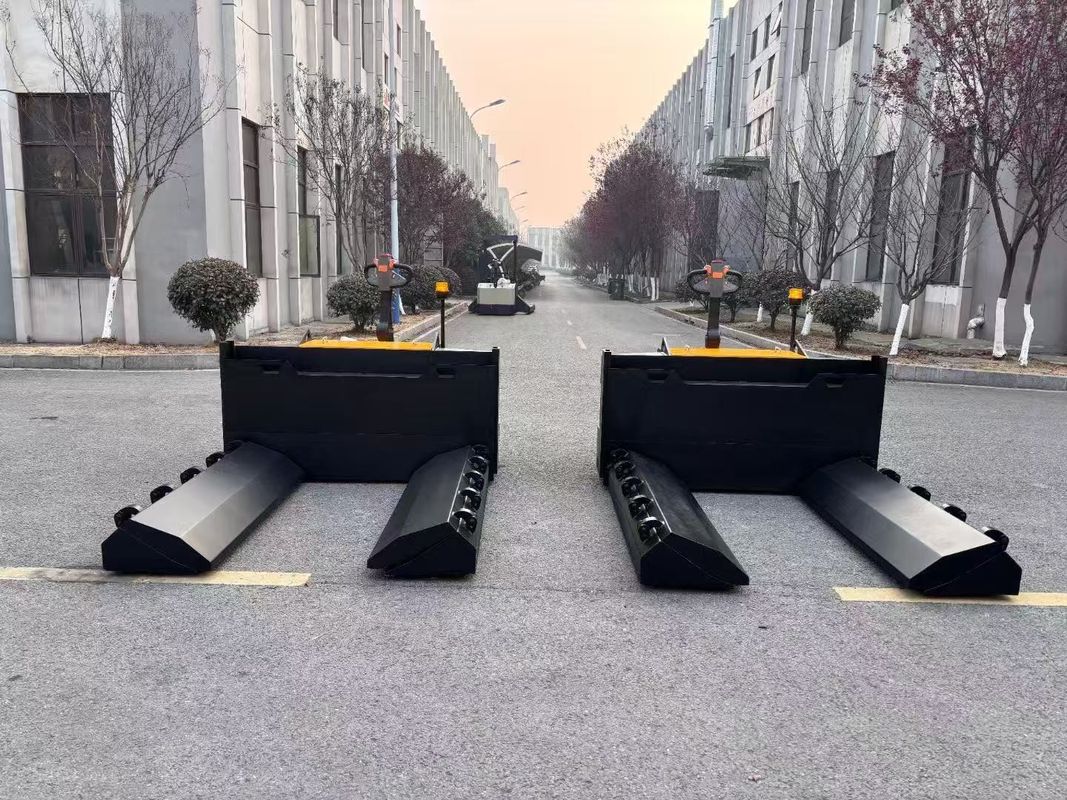

Paper roll type transport stacker
Uniform load capacity: 7000kg
Fork length: 1600mm
Paper roll diameter: 1150-450mm
Battery capacity: 24V 400AH
Voltage standard: American standard single-phase 110V
Curtis Control System
Electronic steering walking style
Walking alarm light, reversing buzzer
| Name | Electric pallet truck | |
| Model | CBD70 | |
| Load | kg | 7000 |
| Load center | mm | 600 |
| Min. ground clearance | mm | 145 |
| Max. ground clearance | mm | 265 |
| Control form | Side standing | |
| Vehicle width | mm | 1250 |
| Total length of vehicle body | mm | 2220 |
| Fork outer width | mm | 800 |
| Maximum ground clearance of steering wheel | mm | 1275 |
| Turning radius | mm | 2015 |
| Fork Length | mm | 1600 |
| Right angle stacking channel | mm | 2720 (pallet size 1000*1000) |
| Traveling speed (loaded/ unloaded) | km/h | 5/ 6 |
| Lifting motor (S3-15%) | kw | 4.5 |
| Travel motor (S2-60min) | kw | 4.0 |
| Steering motor | kw | 0.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Electronic steering | |
| Controller | CURTIS | |
| Body weight | kg | 1700 |
| Battery weight | kg | 500 |
| Climbing gradient (full load/ no load) | % | 3/8 |
| Battery capacity | v/ah | 48/300 |
| Charger | v/ah | 48/50 |
| Number of tires, front/ rear (X= drive wheel) | 4/1X+8 | |
| Drive wheel | mm | Φ343 *135 |
| Bearing wheel | mm | Φ125*100 |
| Auxiliary wheel | mm | Φ150*50 |
| Lifting speed (full load/ no load) | mm/s | 40/54 |
| Falling speed (full load/ no load) | mm/s | 55/45 |
| Tire type | Polyurethane | |
| Battery replacement method | Side pull type |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift with rich experience for more than 5 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM or ODM service?
A4: Yes.
Our products are sold all over the world, you can rest assured.
